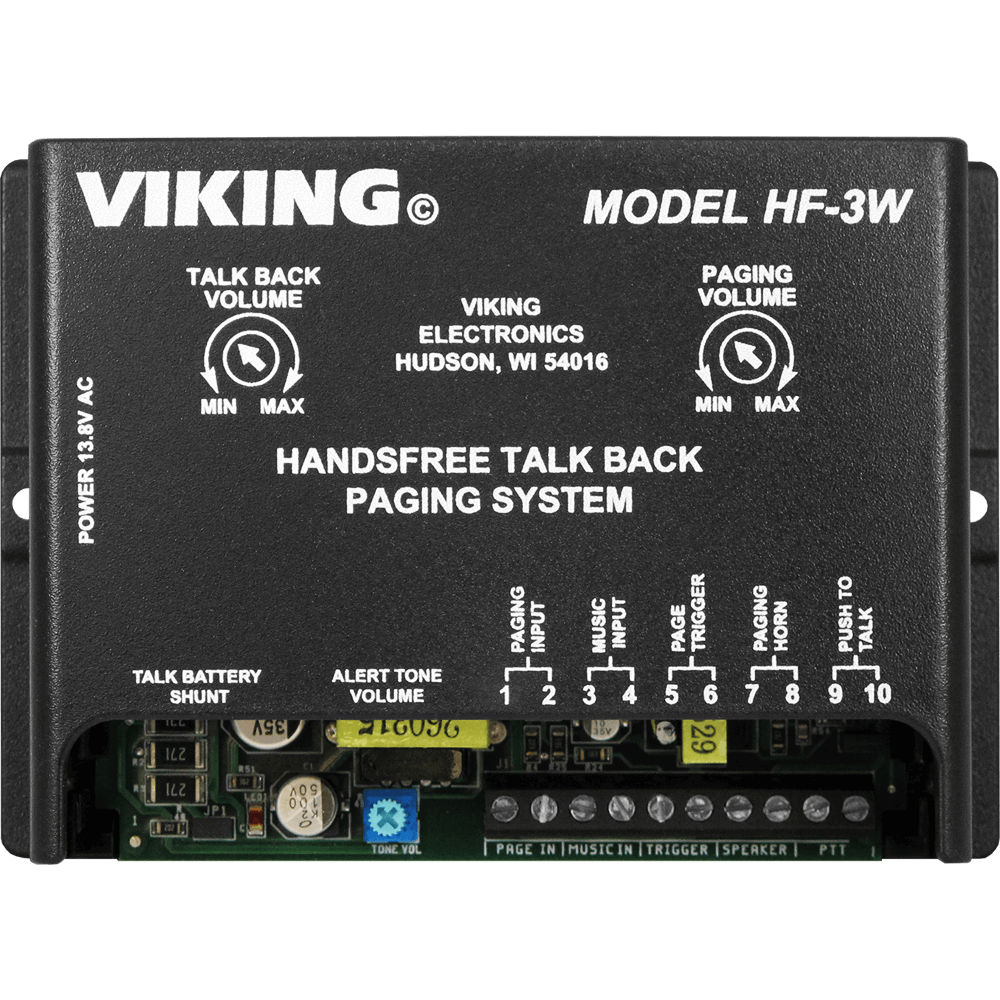

Viking HF-3W Two-Way Handsfree Talkback Amplifier

Viking HF-3W Two-Way Handsfree Talkback Amplifier provides handsfree talkback paging for use in city desks, shipping, warehouses, service departments or any application where quick answers are needed.

Viking HF-3W Features:

Improved audio circuitry including automatic gain control for talk-back audio

• Alert tone
• Selectable “Push-to-Talk” feature for noisy environments
• 28V DC talk battery
• 3 Watts of paging power
• Compatible with some two-way paging ports
• Background music input
• May be integrated into existing paging system
• (1) 25AE paging horn included
• 25-50 ft talk-back range
• Optional 300AE Paging Horn may be used

Viking HF-3W Applications:

• City desks
• Shipping docks
• Manufacturing plants
• Service desks
• Warehouses
• Schools
• Parts departments

Viking HF-3W Specifications:

• Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
• Dimensions: 5.25” x 3.5” x 1.75” (133mm x 89mm x 44mm)
• Shipping Weight: 3 lbs (1.36 kg)
• Environmental: 32°F to 90°F (0°C to 32°C) with 5% to 95% non-condensing humidity
• Talk Battery: 28V DC
• Speaker: (1) 25AE 8 Ohm / 12 Watt horn included, (2) maximum
• Maximum Speaker Run: 500 ft (152m) maximum, 18 AWG
• Amplifier: 3 Watt output power
• Connections: 10 pin screw terminal strip

Viking HF-3W Certifications:

• FCC Part 68
• FCC Part 15
