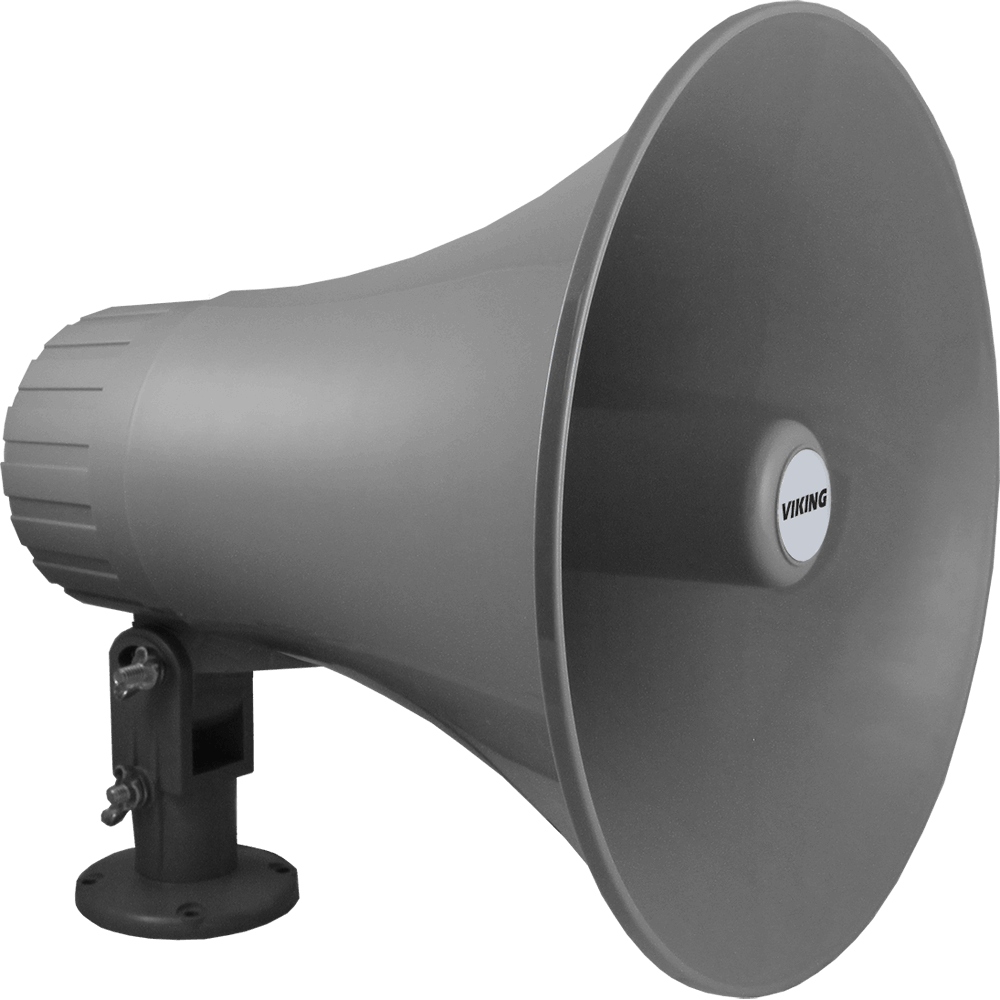

Viking 300AE 30 Watt 8 Ohm 70 Volt Paging Horn

The Viking 300AE paging horn provides a direct voice coil connection for use with Viking 8 ohm paging systems. The 300AE paging horn also provides a built-in step-down transformer for use with 25V or 70V paging systems such as Viking models PA-30 and PA-60. The transformer has a range of power taps that are selectable with a 6 position rotary switch.

Viking 300Ae Features:

• Large 10 inch diameter horn
• 30 watt power handling
• Direct 8 ohm connection or step-down transformer connection
• Compatible with 25V or 70V paging systems
• Weather resistant rugged gray plastic housing
• Fully adjustable mounting hardware included
• Wide frequency response
• Greater intelligibility of voice pages
• Suitable for background music
• High efficiency

Specifications:

• Power Handling: 30 Watts
• Direct Impedance: 8 Ohms
• 70V Taps: 4W, 8W, 15W, and 30W
• 25V Taps: .5W, 1W, 2W, 4W, 8W, and 15W
• Viking Taps: 1W, 2W, 4W, 8W, 15W, and 30W
• Frequency Response: 300 Hz to 9000 Hz
• Sound Pressure Level: 107dB 1W/1m, 117dB 30W/1m
• Dimensions: 254mm (10”) diameter, 292mm (11.5”) Long
