Name: Viking E-1600A-EWP ADA Compliant Red Emergency Phone with Enhanced Weather Protection (EWP)
SKU: E-1600A-EWP
Price: 429.4 USD
Availability: OutOfStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$429.40

Availability: In Stock

SKU

E-1600A-EWP

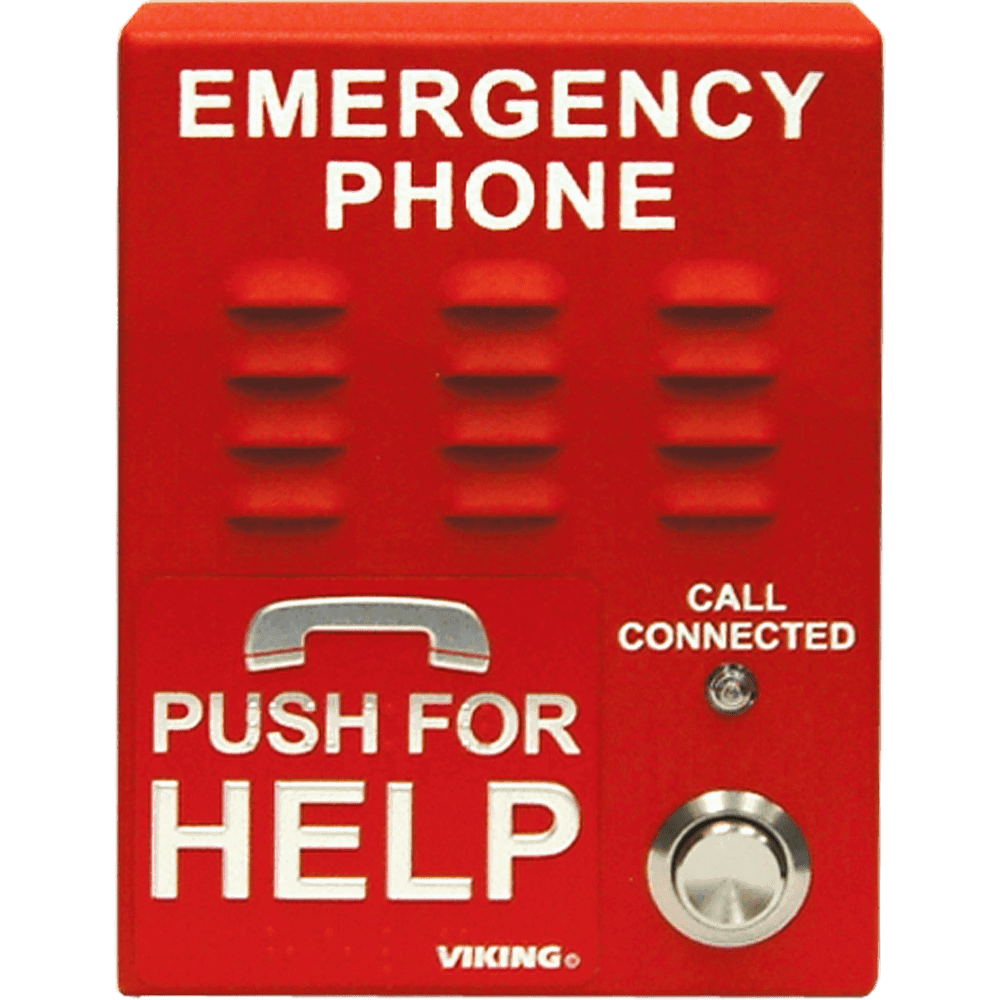

The Viking E-1600A-EWP is an ADA Compliant Emergency Phone designed to provide reliably quick handsfree communication for standard analog telephone lines or an analog station/extension port on a phone system. The Viking E-1600A meets elevator / emergency telephones ADA requirements and can be programmed from any touch tone phone. The elevator phone can be pre-programmed to dial up to 5 emergency numbers, as well as 2 central station numbers.

The Viking E-1600A-EWP can be programmed to deliver a digital announcement to identify the emergency call location. A DTMF touch tone code can also be delivered. The button has a built-in “Call Connected” LED that can be initiated manually or automatically. All programming, phone numbers and location numbers are stored in non-volatile memory.

Product Brochure

1600A-Series_6.pdf

Details

Viking E-1600A-EWP Emergency Elevator Phone Features:

Can automatically light "call connected" LED for hearing impaired
Transmits a unique location I.D. code or voice announcement
Grade 2 Braille label for visually impaired
Non-volatile digital voice announcer with 16 seconds of voice memory
Non-volatile E² memory
Advanced call progress detection
Handsfree operation
Phone line powered
Touch tone or pulse dialing
Dials up to 5 emergency numbers
Cycles through backup emergency and non-emergency numbers on busy or no-answer
Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
Programmable to auto-answer on incoming calls
Remotely programmable
Extended temperature range (-15°F to 130°F)
Central station monitoring capability (dials 2 numbers)
Separate central station voice speed dial number
Enhanced weather protection (EWP) ideal for outdoor or harsh environments
For Standard version see E-1600A
EWP includes rubber gaskets and boots, silicon sealed connections, and gel-filled butt connectors
Manufacturer Warranty 2 Year Limited Warranty

Viking E-1600A-EWP Applications:

Elevators
Parking ramps
Pools
ATM machines
Area of refuge locations
Lobbies
Entryways
Campus emergency stations
Roadside emergency stations
Stadiums
Convention centers
Viking E-1600A-EWP Specifications
- Power: Telephone line powered (24VDC / 20mA minimum)
- Dimensions: 5.25″ x 4.0″ x 2.0″ (133mm x 102mm x 51mm)
- Operating Temperature: -15°F to 130°F (-26°C to 54°C)
- Humidity: 5% to 95% non-condensing
- Shipping Weight: 2.5 lbs (1.13 kg)
- Material: 16 gauge steel with textured red powder paint
- Mounting: Surface mount to walls, posts, single gang boxes, or 4″ x 4″ electrical junction boxes; recess mount in elevator phone boxes
- Connections: (2) Gel-filled butt connectors
Viking E-1600A-EWP Certifications
- FCC Part 68
- FCC Part 15
- ADA
