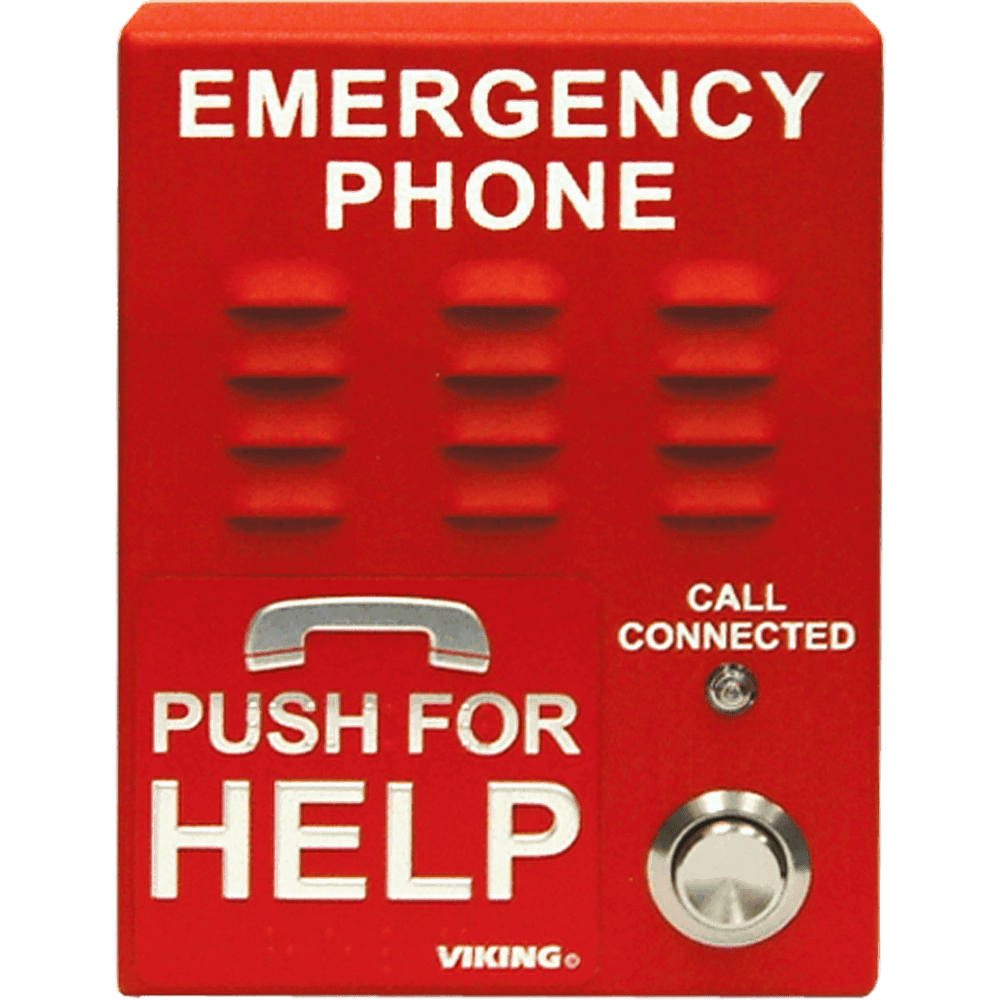

Viking E-1600A ADA Compliant Red Emergency Elevator Phone with Dialer and Voice Announcer

$259.45
Availability: In Stock
SKU
E-1600A

The Viking E-1600A is an ADA Compliant Emergency Phone designed to provide reliably quick handsfree communication for standard analog telephone lines or an analog station/extension port on a phone system. The Viking E-1600A meets elevator / emergency telephones ADA requirements and can be programmed from any touch tone phone. The elevator phone can be pre-programmed to dial up to 5 emergency numbers, as well as 2 central station numbers.

The Viking E-1600A can be programmed to deliver a digital announcement to identify the emergency call location. A DTMF touch tone code can also be delivered. The button has a built-in “Call Connected” LED that can be initiated manually or automatically. All programming, phone numbers and location numbers are stored in non-volatile memory.

Product Brochure

Viking E-1600A Emergency Elevator Phone Features:

  • Can automatically light "call connected" LED for hearing impaired
  • Transmits a unique location I.D. code or voice announcement
  • Grade 2 Braille label for visually impaired
  • Non-volatile digital voice announcer with 16 seconds of voice memory
  • Non-volatile E2 memory
  • Advanced call progress detection
  • Handsfree operation
  • Phone line powered
  • Touch tone or pulse dialing
  • Dials up to 5 emergency numbers
  • Cycles through backup emergency and non-emergency numbers on busy or no-answer
  • Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
  • Programmable to auto-answer on incoming calls
  • Remotely programmable
  • Extended temperature range (-15°F to 130°F)
  • Central station monitoring capability (dials 2 numbers)
  • Separate central station voice speed dial number
  • Dimensions: 133mm x 102mm x 51mm (5.25” x 4.0” x 2.0”)
  • Enhanced weather protection (EWP) option ideal for outdoor or harsh environments
  • For Enhanced Weather Protection Version see E-1600A-EWP
  • Manufacturer Warranty 2 Year Limited Warranty

Viking E-1600A Applications:

  • Elevators
  • Parking ramps
  • Pools
  • ATM machines
  • Area of refuge locations
  • Lobbies
  • Entryways
  • Campus emergency stations
  • Roadside emergency stations
  • Stadiums
  • Convention centers
  • Silent hold-up alarm dialer when used with a Viking PB-1 Panic Button Kit

Viking E-1600A Specifications:

  • Power: Telephone line powered (24VDC / 20mA minimum)
  • Dimensions: 5.25″ x 4.0″ x 2.0″ (133mm x 102mm x 51mm)
  • Operating Temperature: -15°F to 130°F (-26°C to 54°C)
  • Humidity: 5% to 95% non-condensing
  • S
  • hipping Weight: 2.5 lbs (1.13 kg)
  • Material: 16 gauge steel with textured red powder paint
  • Mounting: Surface mount to walls, posts, single gang boxes, or 4″ x 4″ electrical junction boxes; recess mount in elevator phone boxes
  • Connections: (2) Gel-filled butt connectors

Viking E-1600A Certifications:

  • FCC Part 68
  • FCC Part 15
  • ADA
More Information
Model E-1600A
Warranty 2 Year Limited Warranty
