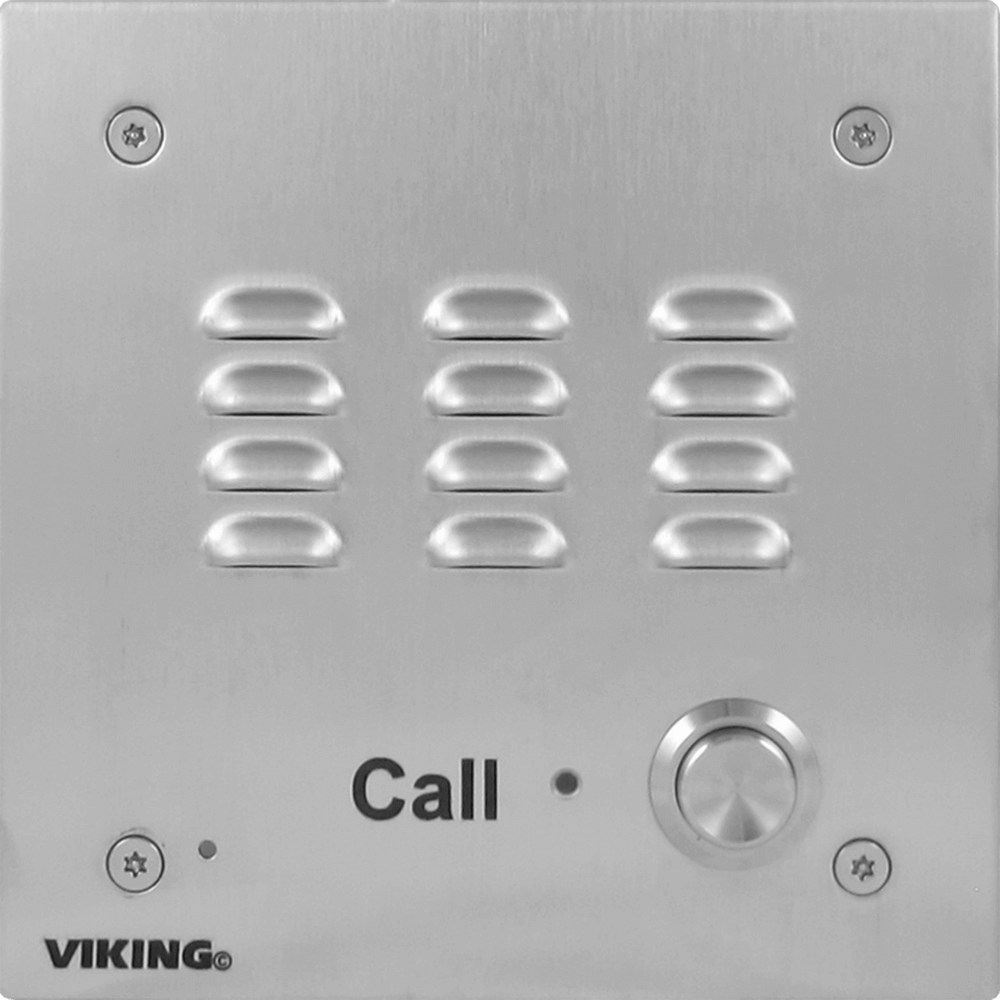

Viking W-3000 Weather Resistant Outside Doorbox 24v Talk Battery

$193.64
Availability: In Stock
SKU
W-3000

Manufacturer Warranty
2 Year Limited Warranty

Product Brochure

WARNING: THIS PHONE WILL NOT WORK ON A REGULAR PHONE LINE! Verify compatibility first!

Viking W-3000 Features:

  • Vandal resistant, 14 gauge stainless steel faceplate
  • Heavy-duty metal push button and mounting gasket.
  • Flush mount using the included rough-in box or surface mount using an optional VE-5x5 backbox
  • Yellow call progress/ night light LED
  • New high output speaker amplifier with volume adjustment POT
  • Microphone volume adjustment POT
  • 24 volt talk battery
  • 20 Hz ring generator (3.0 REN ring load maximum)
  • Selectable ring cadence (standard or 2 short rings)
  • Selectable number of rings (2, 3, 10 or 30)
  • Selectable “Push-to-Talk” feature for noisy environments
  • Extended operating temperature range: -15°F to 130°F
  • Compact 45° terminal strip for easy wiring
  • W-3000-EWP has Enhanced Weather Protection GTIN 0615687222111
  • Door/Gate entry system for any phone system
  • Doorboxes generate up to ten rings on your telephones when the 'Call' button is pressed

UPC Codes:
  • 615687222111
  • 615687220957

Provide your business or residential customers with the security and convenience of conversing with visitors from their own phone prior to allowing entry. Ideal for night doors, shipping/receiving departments, warehouses., residential applications or any security-sensitive entry, Designed to install on an unused trunk he input on Electronic or IA2 single or multiline 'No KSU' phones and PABX. When the 'Call' button is pressed the unit rings the phones up to 10 times (adjustable) or until answered. Microphone volume is provided.

The door boxes provide 24V talk battery permiting loop lengths in excess of 6300 ft., using 24 AWG twisted pair. The power included can be mounted up to 150 ft. from the unit using 24 AWG twisted pair. The units provide 3 REN output (enough to ring six .5 REN phones). To ring additional phones use model, VI-RG-10A Ring Booster. (Power supply included)

Viking W-3000 is a vandal resistant 5" x 5" brushed 14 Ga. stainless steel flush mount unit. LED indicates switch location and call progress. Can generate distinctive ringing. An electrical mounting box is supplied. Can provide a push to talk option for noisy locations.

Enhanced Weather Protection Option:

Includes weather-sealed trim pots and DIP switches, a special rubber microphone boot and a mylar speaker with a rubber gasket acting as a primary shield against water penetration. If required, face plate gaskets are provided to further eliminate water infiltration. All connections are hand soldered to eliminate corrosion, and the connections at the push button switch, microphone, and "Call Connected" LED are also hand sealed using a special non-corrosive electronics grade flexible silicone sealant. The entire circuit board is "potted" in a flexible urethane encapsulating material, leaving the weather sealed field-adjustable trim pots and DIP switches accessible for on-site programming. The flexible urethane sealant allows the circuit board and its components to expand and contract, while maintaining weather resistance. To protect the tip and ring connections, special connectors filled with anti-corrosive sealing gel are included.

More Information
Model W-3000
UPC 0615687222111
Warranty 2 Year Limited Warranty
