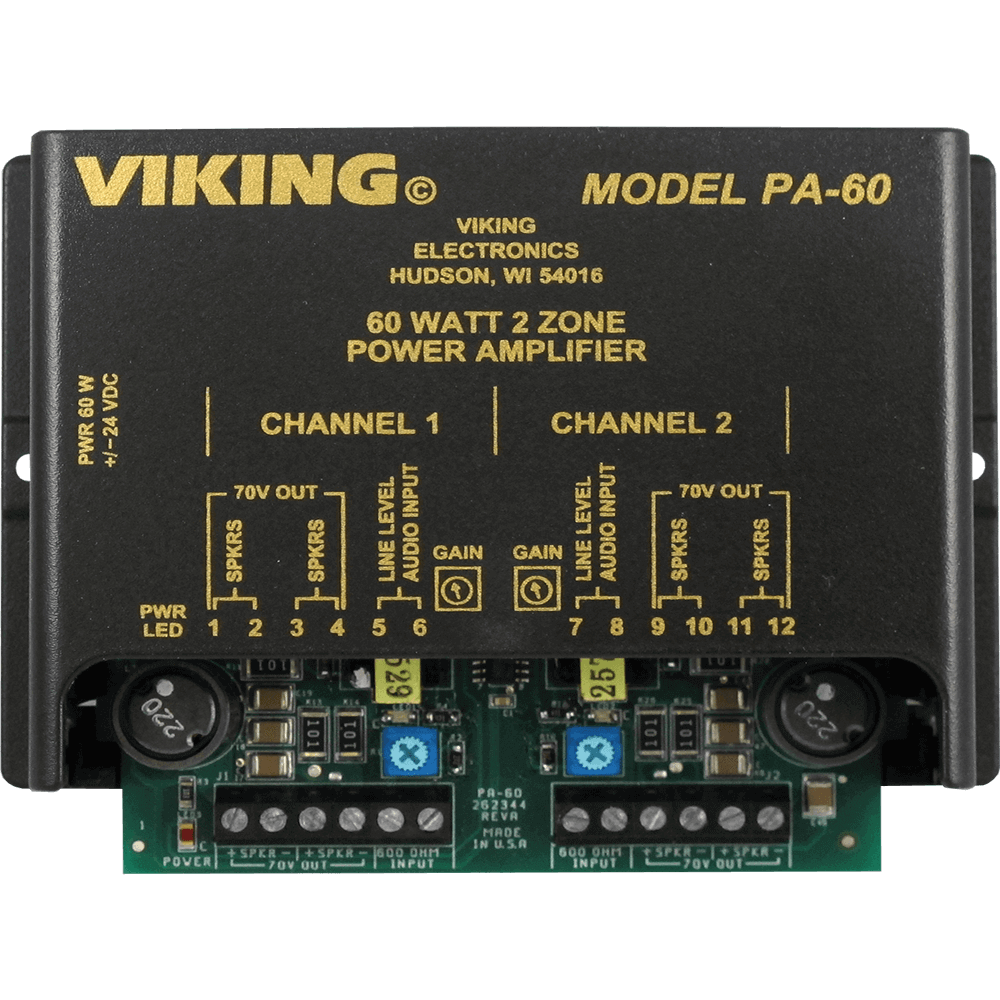

Viking PA-60 60 Watt Compact Two Zone Amplifier

Availability: In Stock
Product Brochure

The PA-60 can directly drive up to sixty (60) 8 ohm paging speakers or one hundred (100) 70 volt or 25 volt paging speakers. Both channels can be fed the same input so the PA-60 can be used as a single large amplifier, or each channel can be fed different inputs so the PA-60 can be used as a two zone amplifier.

Viking PA-60 Features:

  • 60 Watts of total paging power
  • Two separate amplified zones of paging
  • Drive up to (60) 8 ohm speakers
  • Drive up to (100) 70V or 25V speakers
  • Separate input gain controls for each channel
  • Voltage, current, thermal, and short circuit protected
  • Super high efficiency allows high power in a small package
  • Power: 100 - 240 VAC 50/60Hz 60w UL listed adapter provided
  • Dimensions: 133mm x 89mm x 44mm (5.25” x 3.5” x 1.75”)
  • Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
  • Separate input gain controls for each channel
  • Maximum Gain: 22dB
  • Input Sensitivity: 1.25Vrms
  • Harmonic Distortion @ 1kHz: -60dB
  • Frequency Response: 40Hz to 20kHz
  • Connections: (2) 6 position screw terminal block
  • Voltage, current, thermal and short circuit protected
  • Manufacturer Warranty: 2 Year Limited Warranty

Viking PA-60 Applications:

  • Amplified loud paging
  • Zone paging
  • Add more paging power for increased paging volume
  • Add more speakers to an existing paging system
More Information
Model PA-60
Warranty 2 Year Limited Warranty
