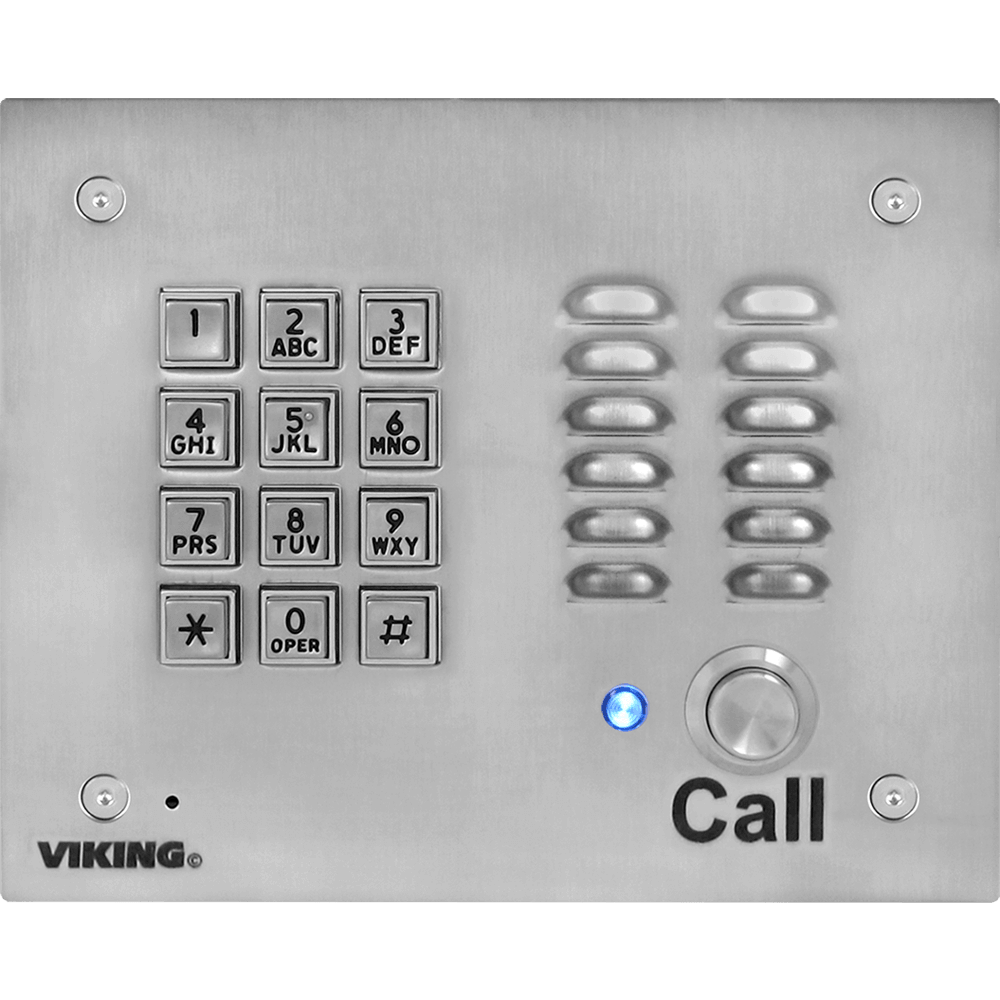

Viking K-1700-3 Vandal Resistant Handsfree Entry Phone with Keypad
Viking K-1700-3 Vandal Resistant Handsfree Entry Phone with Keypad
$355.95
SKU: K-1700-3
PRODUCT DETAILS
The K-1700-3 is a tough and attractive speaker phone designed to provide two-way handsfree communication, ideal for apartment and residential door entry applications. The door entry phone features microphone and speaker volume controls, selectable auto answer for monitoring, and intelligent call progress detection for automatic hang-up when the call is completed.
When the “Call” button is pressed, the K-1700-3 returns dial tone, and the keypad may then be used to dial any number. If no touch tone is entered within 8 seconds, CPC is detected, a busy signal is detected, or the programmable maximum call time has elapsed, the K-1700-3 will automatically disconnect. Alternatively, the K-1700-3 may be disconnected by pressing the “Call” button again.
The K-1700-3 is designed to be flush mounted using the included rough-in box. Surface mount options are also available using Viking’s VE-6X7 Series Surface Mount Boxes.
For outdoor installations where the unit is exposed to precipitation or condensation, use model K-1700-3-EWP. For more information on Enhanced Weather Protection (EWP), see DOD 859.
Manufacturer Warranty
2 Year Limited Warranty
Couldn't load pickup availability
Vandal Resistant Handsfree Entry Phone with Keypad is designed especially for apartment and door entry applications.
K-1700-3 Features:
- Vandal resistant
- 14 gauge stainless steel faceplate
- Heavy duty metal keypad and “call” button
- Stainless steel speaker/mic screen
- Scratch resistant powder coating on K-1700-3-BN
- Hex drive mounting screws
- Yellow “in use” LED
- Volume adjustments for microphone and speaker
- Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC reorder tone, maximum call time out and selectable silence time out
- Selectable auto-answer feature
- Selectable push button disconnect
- Zinc plated steel rough-in box with (2) 3/4” conduit knockouts
- Selectable maximum call time
- Selectable VOX switching speed
- Telephone line powered
- Finish: Brushed Stainless Steel
Specifications:
- Power: Telephone line powered 20V DC/20mA minimum
- Dimensions: Overall: 140mm x 165mm x 66mm (5.5” x 6.5” x2.6”) , Rough-in box: 114mm x 140mm x 64mm (4.5” x 5.5” x 2.5”)
- Environmental: -29°C to 54°C (-20°F to 130°F)
- Humidity - K-1700-3: 5% to 95% non-condensing
- Humidity - K-1700-3-EWP: Up to 100% condensing
- Speaker Volume: Approximately 70 db maximum @1m
- Connections: Standard - (1) two-position terminal block, EWP -Gel-filled tip and ring connectors
- CPC Disconnect Time: 500ms minimum
- REN #: 0.5 A
Available Models:
| Enhanced Weather Protection Version | K-1700-3-EWP |
| Standard Oil Rubbed Bronze Finish Version | K-1700-3-BN |
| Enhanced Weather Protection Oil Rubbed Bronze | K-1700-3-BN-EWP |
