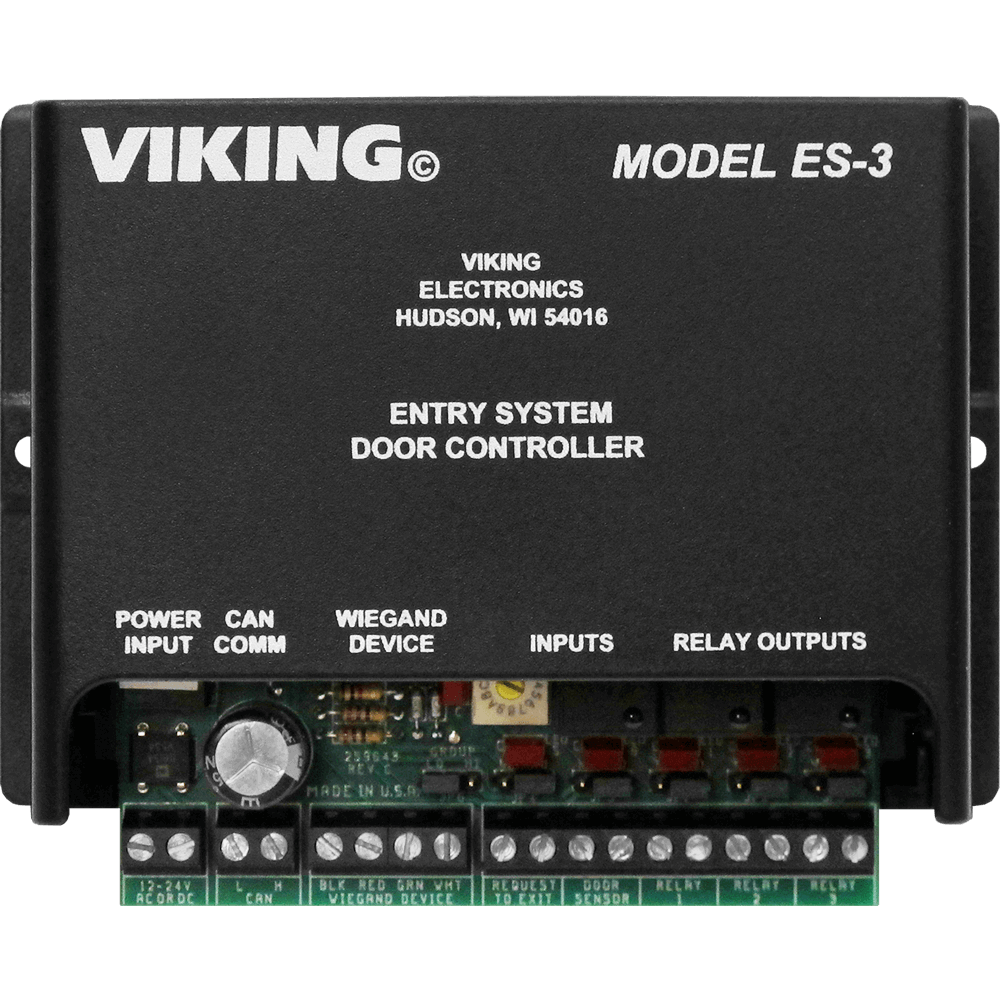

Viking ES-3 Entry System Door Controller for 32 Entry Points

$176.58
Availability: Usually ships in 5 days
SKU
ES-3
Manufacturer Warranty
2 Year Limited Warranty
Entry System Door Controller for 32 Entry Points is an entry system door controller designed to operate a door strike or magnetic lock upon receiving a valid card read from a Wiegand device.
Features:
  • Up to 525 tenants
  • Up to 32 entry points are possible
  • Logs up to 1024 entry events
  • Two wire CAN communication protocol can be daisy-chained together
  • Share with door strike’s 12-24 Volt AC or DC power source
  • Inputs may be either normally open (NO) or normally closed (NC) contacts
  • Relay outputs may provide either normally open (NO) or normally closed (NC) contacts
  • Interfaces with ADA Compliant Entry System (Model #: AES-2000)
  • Up to 32 entry points with ES-1 Door Controller may be added to AES-2000
  • Programmable parameters, like relay activation and delay times, are PC programmed via AES-2000
  • Use with any 26 bit Wiegand device
  • Made in the USA
Note: One (1) ES-3, one (1) Wiegand device, and a door strike or magnetic lock of your choice is required for each entry point.
More Information
Model ES-3
Warranty 2 Year Limited Warranty
