Operating Temperature: -26°C to 54°C (-15°F to 130°F)

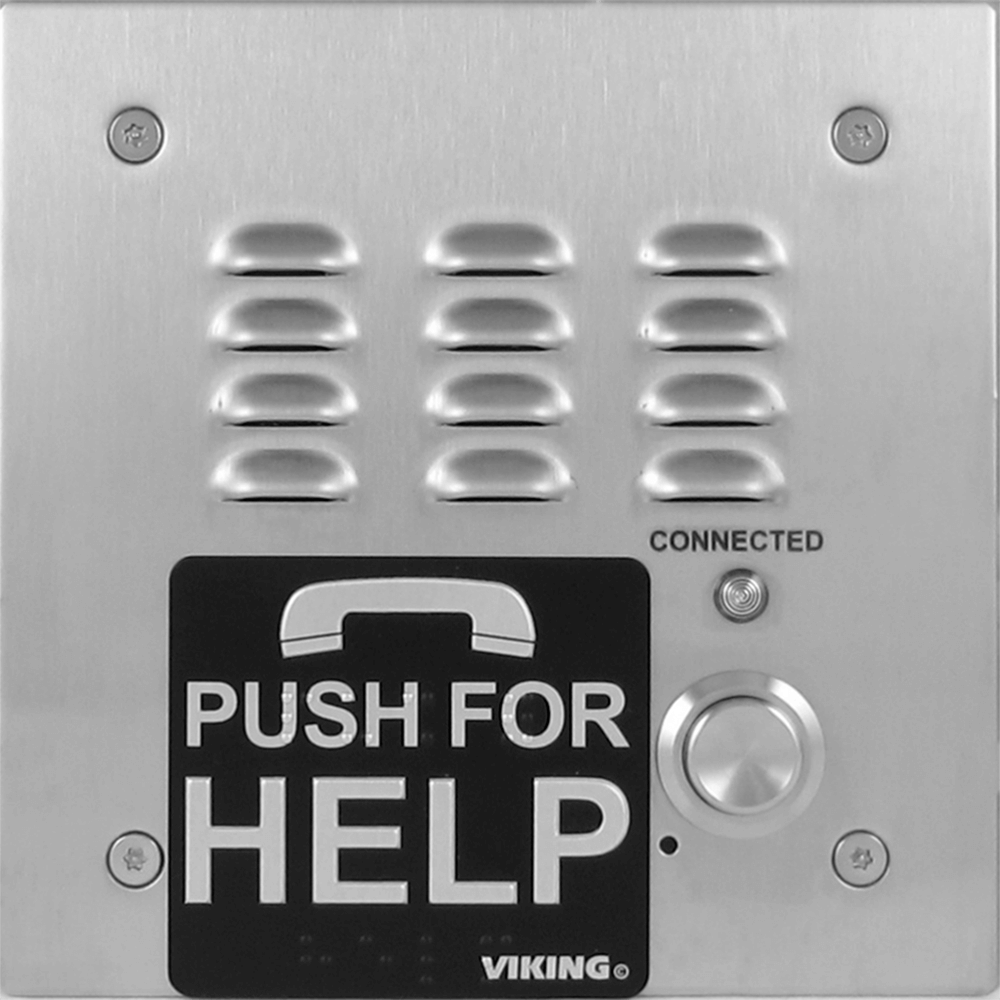

The E-1600-30A ADA Compliant Emergency Phone is designed to provide quick and reliable handsfree emergency communication for any standard analog telephone line or analog phone system station port. The E-1600-30A meets ADA requirements for elevator / emergency telephones, and can be programmed from any touch tone phone. It can dial up to 5 programmable emergency numbers, as well as 2 central station numbers.
The E-1600-30A can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Additionally, a DTMF touch tone code may also be delivered. A “Call Connected” LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory. The E-1600-30A is phone line powered, requiring no batteries or external power and is compatible with common Central Station Monitoring equipment.
For outdoor installations where the emergency phone unit is exposed to precipitation or condensation, use model E-1600-30A-EWP.
2 Year Limited Warranty
Power: Telephone line powered (24 VDC / 20mA minimum)
Overall Dimensions: 5.0″ x 5.0″ x 2.25″ (127mm x 127 x 57mm)
Rough-In Box Dimensions: 4.0″ x 4.0″ x 2.14″ (102mm x 102mm x 54mm)
Shipping Weight: 2.12 lbs (1.0 kg)
Operating Temperature: -15°F to 130°F (-26°C to 54°C)
Humidity: 5% to 95% non-condensing
Front Panel Material: 14 gauge marine grade 316 brushed stainless steel
Included Hardware: (4) 6-32 X 3/4″ marine grade 316 stainless steel, flat head, T-10 Torx security screws
Connections: (2) gel-filled butt connectors
|Warranty||2 Year Limited Warranty|
