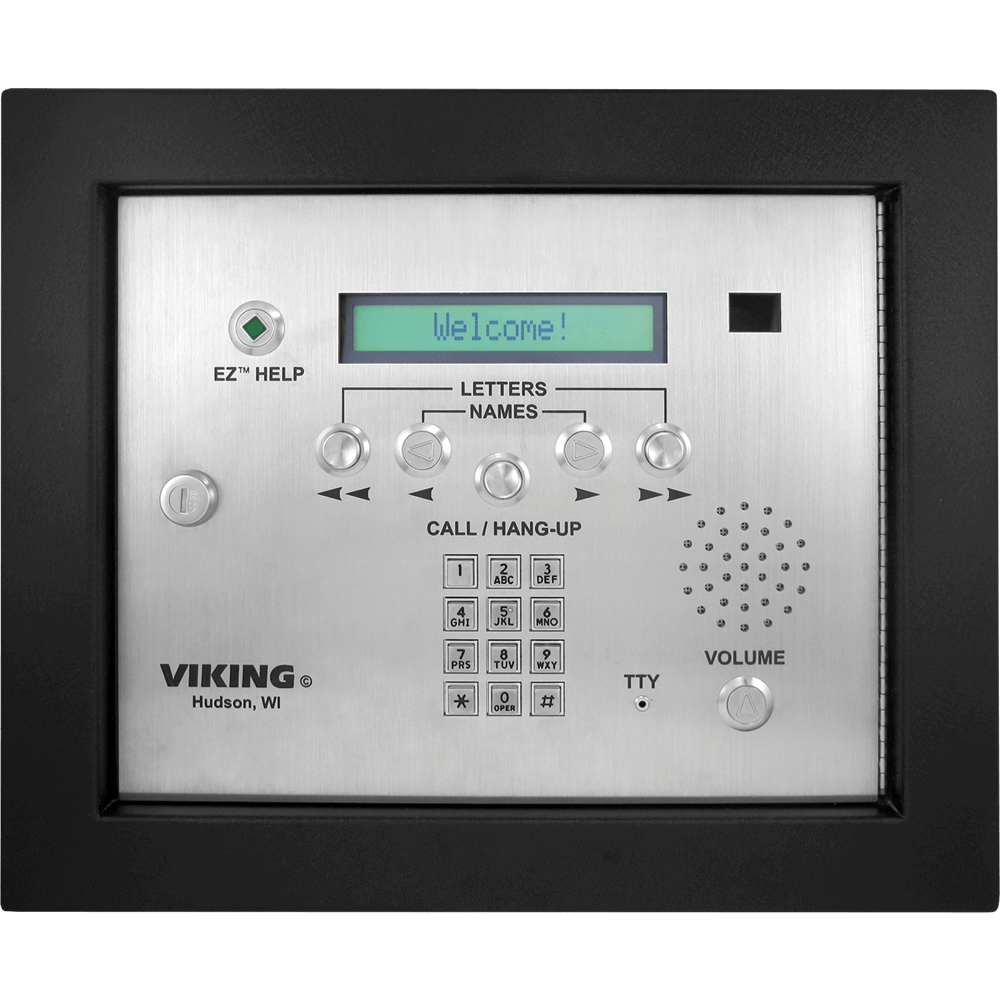

Viking AES-2005F ADA Compliant Entry System with Color Video Camera
Viking AES-2005F ADA Compliant Entry System with Color Video Camera
$3,083.49
SKU: AES-2005F
The Viking AES-2005F Accessible Entry System provides both audio and visual assistance for those with disabilities, two-way handsfree audio communication, and color composite video of who is at your door or gate entrance.
The LCD display with large 0.5″ tall characters is back-lit and will display a directory of tenants as well as directions and prompts. A built-in voice recorder and announcer can also provide a supporting audio message. When the EZ Access button is pressed, instructions on how to use the system are both displayed and announced.
The built-in directory can support up to 525 tenant names and phone numbers and will dial a pre-programmed phone number upon selection of a tenant. Once two-way communication has been established, the tenant can activate a remote door strike by entering a touch tone command. A second relay is also provided to operate an automatic door. The Viking AES-2005F will also support keyless door entry at the door via its built-in keypad, or add a Viking Proximity Reader.
The unit is available in flush (Viking AES-2005F) and surface mount (AES-2005S) configurations and features a highly vandal resistant housing.
Note: This unit requires a Viking PB-100 for programming and because it uses modem transmissions, it requires a high quality analog phone line for proper operation.
Couldn't load pickup availability
Manufacturer Warranty
2 Year Limited Warranty
Applications
- High rise apartment buildings
- Condos
- Senior citizen buildings
- Assisted care centers
- Retirement homes
- Gated communities
- Use with Viking proximity readers
Viking AES-2005F Features
- Built-in high resolution color video camera with wide viewing angle, tilt / swivel adjustments and wide operating temperature
- 16 position, back-lit display with 0.5″ tall characters
- Non-volatile digital voice announcer
- Supports up to 525 tenant names and phone numbers
- Voice announce 75 names (expandable to 525 names using ERAM-4M expansion kits, DOD 854)
- Non-volatile data memory for names, phone numbers and access codes
- Volume control
- AES-NET card reader interface included
- TTY jack for connection to personal teletypewriter (TTY)
- Postal lock switch input
- Keyless entry capability
- 5 Amp door strike / magnetic lock control relays
- Vandal resistant features:
- 12 gauge stainless steel front panel
- 0.25″ thick abrasion resistant polycarbonate display lens
- Metal keypad and push button switches
- Front panel lock
- Speaker protection screen
- Weather resistant features:
- Enamel coated circuit board
- Gasketing behind lens, speaker, keypad and perimeter of front pa
Specifications
| AES-2005F Power | 120VAC / 13.8VAC 1.25A UL listed adapter provided |
|---|---|
| Camera Power | 120VAC / 12VDC 500mA UL listed adapter provided or 6-22VDC 150mA |
| Dimensions | 15.1″ x 12.6″ x 3.25″ (383.5mm x 320mm x 82.55mm) |
| Shipping Weight | 17 lbs (7.7 kg) |
| Operating Temperature | -15°F to 130°F (-26°C to 54°C) |
| Humidity | 5% to 95% non-condensing |
| Display | 16 position, 0.5″ x 4.25″ back-lit LCD |
| SPDT Relay Contact Rating | 5A @ 30VDC / 5A @ 250VAC, 250VAC maximum |
| Image Sensor | 1/4″ color CMOS |
| Video Output | 1VP-P composite, NTSC, 75 Ohms |
| Resolution | 420 lines (640 x 480 @ 30fps / 307,200 pixels) |
| Sensitivity | 0.025 LUX (50 IRE) F1.2 3200K |
| Lens | 2.1mm, conical pinhole |
| Field of View | 80° Horizontal, 60° Vertical, 100° Diagonal |
| Tilt / Swivel Adjustment | Vertical +/- 20°, horizontal +/- 30° |
| Connections | (20) cage clamp screw terminals, 3 gel-filled butt connectors (3M Scotchlok UR2) |
